Foil Drive Assist MAX
The Assist MAX is the all-rounder Foil Drive system, engineered for the perfect balance between thrust, runtime, and versatility across all foiling disciplines.
Providing an optimized blend of power, endurance, and weight, The Assist MAX unlocks longer surf sessions, reliable flatwater takeoffs, and easy upwind and downwind riding, and unlimited progression regardless of the conditions.
Details
The MAX is best suited for riders under 100 kg using small to midlength boards and their preferred foil setups, offering a single system that performs across surf, wing, downwind, wake, flatwater, and light eFoiling.
The Foil Drive Assist MAX is perfectly suited to those looking for extra thrust for heavier riders or smaller boards and foils, longer ride times and ultimate flexibility of how you choose to foil. Surf, Wing, Downwind, Wake and Flatwater, the Assist MAX does it all!
Tech Specs
- System Nominal Voltage: 40V
- Battery Capacity Range: 332-594Wh
- Max Thrust: 29kg / 63.9lbs
- Top Power to Weight Ratio (Thrust/Weight): 5.7 N/KG
- Minimum Install Weight*: 4.8kg / 10.5lbs with MAX Sport
- Dimensions with Battery: L525x W125 x H50mm
- Peak Horsepower: 1854W/2.5hp
- Sustained Horsepower: 1455W/1.9hp
- App Compatibility: Foil Drive App, Android and IOS
- Water Rating: IP68 Water and Dust Resistance
What’s Included
*Choice of Motor System*

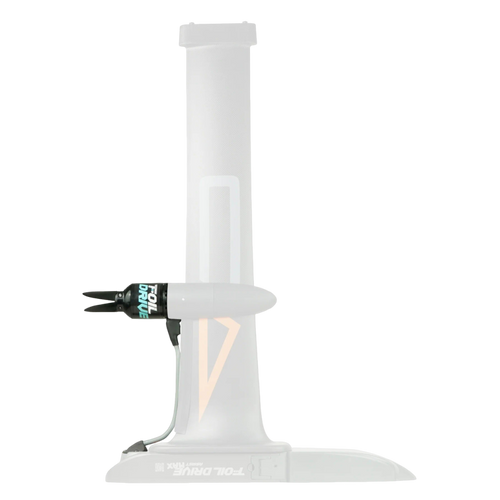

- Complete High Power Motor w/ 20cm Cable
- Integrated Mast High Power Motor
*Please advise if you would like an alturnitive Motor Cable Length for different pod heights
Note: Integrated Mast Motor option does not include puck or motor cable, as these are pre-installed to Carbon Integrated Masts or available separately.
*Choice of Charger AC Lead*
- US Plug Type
- AU Plug Type
- EU Plug Type
- UK Plug Type
Foil Drive Assist MAX
Motor Plug Protector with Keychain
40v Standard Foil Drive Charger 4amp
Nose Cone A
Nose Cone B
Universal Motor Pod - Rear
Universal Motor Pod - Short Nose
Universal Motor Pod - Long Nose
Universal Motor Pod Keys
V3 Wireless Throttle Controller
Controller Wireless Charge Pad and Micro USB Cable
Controller Wrist Strap
1x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case
Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)
Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M4 x 10mm)
- 7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)
Compatible With
MAX High Power Battery
MAX Power Battery (DISCONTINUED)
MAX Sport Battery
MAX Travel Battery
40V Foil Drive Chargers
